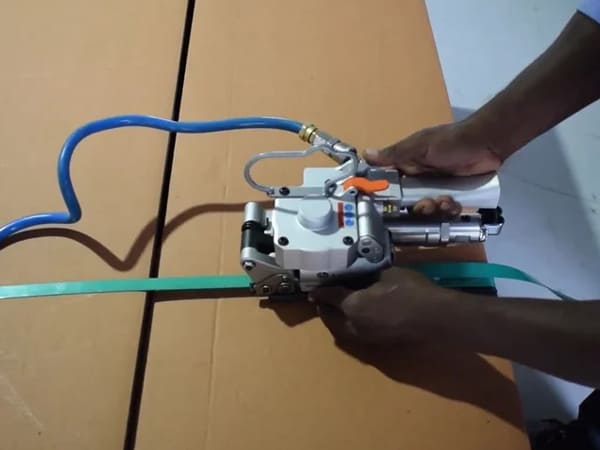

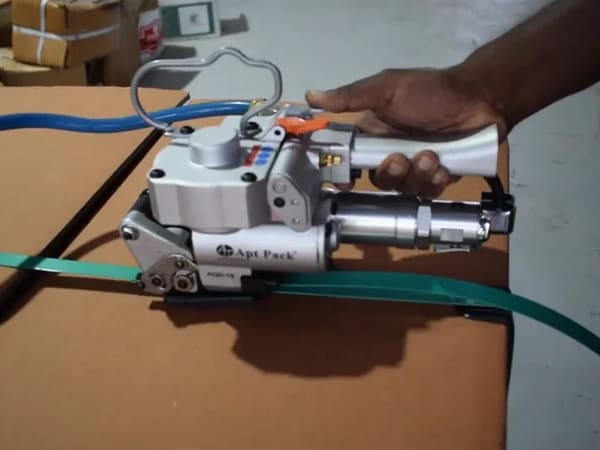

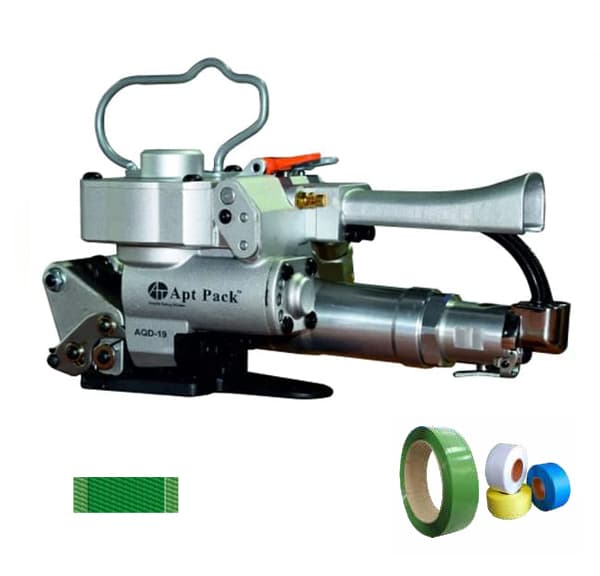

The AQD 19 is a heavy-duty pneumatic tensioner and sealer tool offering a strapping tension of up to 300 kg, making it ideal for heavy industrial flat packaging. Being lightweight, it can be operated by a single person, thereby reducing manpower costs. Its ergonomic design and friction sealing technology ensure safe sealing of packages. The tool uses PET tape to complete a strap at high speed. This PET tape is high-tension, environmentally friendly, and non-polluting, making it an excellent replacement for steel tape.
| Model | AQD - 19 |
| Strap Type | PP / Pet Strap |
| Strap Size (width ) | 13 mm / 16 mm / 19mm |
| Strap Thickness | 0.5 mm - 1.27mm |
| Max. Tension | 3500n |
| Tension Speed | 2 M/ min |
| Sealing Type | Friction Welding |
| Sealing Time | 2-5s |
| Joint Strength | 75% of Breaking Strength |
| Tool Weight | 3.8 Kgs |
| Tool Dimension (lbh) | 280 x 160 x 180mm |
| Air Consumption | 0.3l/min |
| Air Pressure | 5-8bar |
AQD 19 Pneumatic PET Strapping Tensioner & Sealer is applicable to neutral packaging and widely used in the export enterprises of Iron, Color metal, textile, household electric appliance, foodstuff and daily merchandise.
